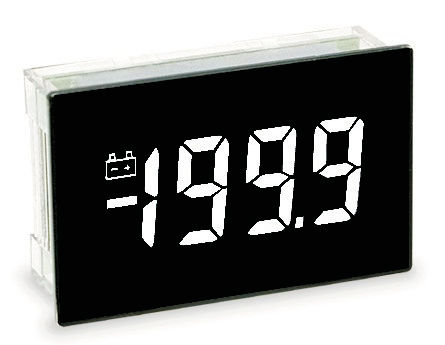

LCD voltmeter SP 400-EB

stationaryDC

Overview This ultra low profile panel meter features a 3½ digit black LCD with 9.75mm (0.38") white digits. With 200mV d.c. full scale reading, auto-zero and auto-polarity, this meter plugs directly into a 9-way SIL socket and can be fitted into a panel via the fixing clip. Splash-proof protection is achieved by fitting the seal supplied. The SP 400-EB-W is a low cost, popular part, normally stocked in high quantity and suitable for new designs. Specification Accuracy (overall error): 0.1 % (±1 count) Operating temperature: 0 to 50 °C (32 to 122 °F) Sample rate: 2.5 samples/sec Supply Voltage: 4.75 to 7.5 V d.c. Supply Current: 40 / 80 mA Application Info The SP 400-EB-W is suitable for a wide variety of applications. These include: •Precision Instrumentation Systems •Power Supply Monitoring •Hand held instruments •Panel-Mount Indication •Automotive Projects
