Temperature indicator -200 ... +1300 ºC | DTM 995B

digitalpanel-mount

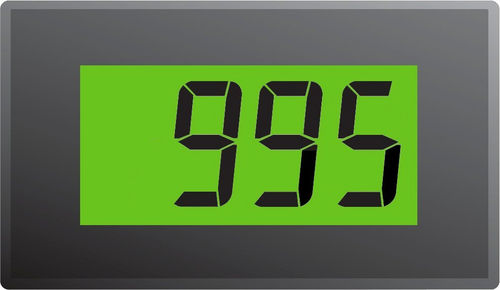

Overview This large panel meter features a 3½ digit LCD with 19mm (0.75") digit height and LED backlighting. It is compatible with K, J and T-type thermocouples via screw terminal connections. This meter can be fitted into a panel via the bezel, window and clips provided. The DTM 995B is a low cost, popular part, normally stocked in high quantity and suitable for new designs. Specification K-type probe measurement range: -200 to 1300 °C (-328 to 1999 °F) J-type probe measurement range: -130 to 900 °C (-202 to 1652 °F) T-type probe measurement range: -200 to 350 °C (-328 to 662 °F) Accuracy (overall error): 1°C (2°F) Operating temperature: 0 to 50 °C (32 to 122 °F) Supply Voltage: 4.75 to 30 V d.c. Application Info The DTM 995B is suitable for a wide variety of applications. These include: •Precision Instrumentation Systems •Temperature Measurement •Hand held instruments •Panel-Mount Indication
