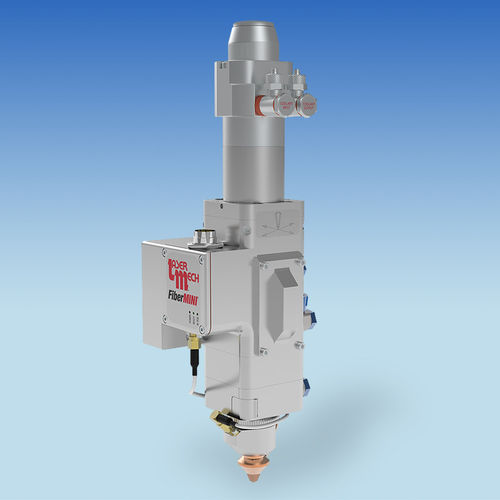

Fiber laser cutting head FiberMINI™ AF

2-axisfor robotsfor tubes and profile cutting

FiberMINI® AutoFocus (AF) is a compact, lightweight design optimized for flat sheet Fiber Laser cutting. The head is capable of processing a wide range of materials with automatic, programmable focus. FiberMINI® AF delivers both user-friendly ­operation and ­reliable ­performance at an attractive price. • Compact, lightweight design • Flexible design allows a wide range of spot sizes • 14 mm of programmable autofocus to set focus position • Temperature sensors protect optics and minimize the chance of overheating • Quick, toolless access to the sealed cover glass • End-user serviceable focus lens • Sealed optics and purge air option • Nozzle cooling for use with highly reflective materials • Laser pierce, air blast option CUTTING HEAD Power Rating: up to 4 kW Nominal Focusing Lens (Fused Silica, λ 1025-1080 nm): 100 mm, 125 mm, 150 mm, 200 mm Clear Aperture: 25 mm Nozzle Orifices: 1 mm to 4 mm Nozzle Styles: Single Orifice, Double, Multi-Hole Shower, Custom Assist Gas Pressure: up to 20 BAR Autofocus Response Time: 14 msec./mm Focal Point To Nozzle Adjustment: -9 mm to +5 mm Weight: ~2.4 kg LASER MECH COLLIMATOR Nominal Collimating Lens (Fused Silica, λ 1025-1080 nm): 35 mm, 60 mm, 75 mm, 100 mm Clear Aperture: 25 mm Fiber Connection (Others Available On Request): QBH (HLC-8), QD (LLK-D) HEIGHT SENSOR Standoff Distance Range (1 mm Recommended): 0.2 mm to 8.0 mm Calibration: Auto Calibrating Response Time: <1 msec. Temperature Stability: ±5% of Standoff Setting, 0° to 45° C Power Requirement: 24 V Output (Optimized Curve For Flat Metal or Linear Signal): 0-10 V Analog
