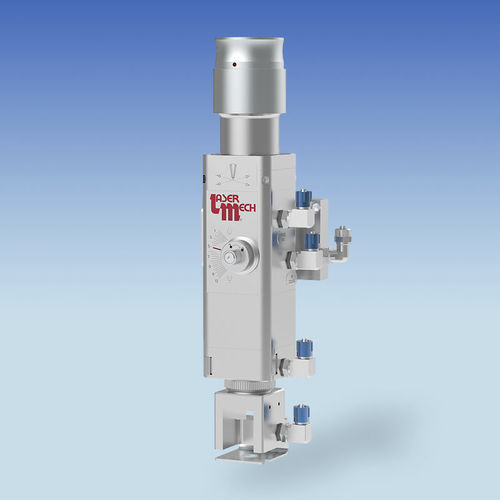

Laser welding head FiberMINI® Weld

precision metal joiningautomatic

At only 55 mm square around its central core, FiberMINI® Weld is an ultra-compact, lightweight welding head for all fiber-delivered, solid-state laser systems to 4 kW. FiberMINI® Weld has a simple, yet flexible design that allows Laser Mech® to optimize the processing head to the end user’s requirements. Optics are protected against contamination by an easily ­accessible cover glass. Offered with either straight or right angle fiber inputs, FiberMINI® Weld delivers both user-friendly operation and reliable ­performance at an attractive price. Available in focal lengths to 400 mm, FiberMINI® Weld features 13 mm of manual focus adjustment, optional camera viewing and an effective air knife to help extend the life of the cover glass. • Available in focal lengths to 400 mm • 13 mm of lens movement to set focus • Effective air knife to help extend the life of the cover glass • Quick and easy access to the cover glass • Flexible design to optimize spot size • Compact, lightweight design • Optional camera viewing • Models available for most popular fiber ­connections Power Rating: up to 4 kW Clear Aperture: 25 mm Collimator Focal Lengths: 35 mm, 60 mm, 75 mm, 100 mm Focusing Lenses: 100 mm to 400 mm Fiber Connections: QD (LLK-D, LCA), QBH (HLC-8), Q5 (LLK-B) [Others available on request] Weight: ~1.5 kg (Base configuration. Weight will vary based on options added)
