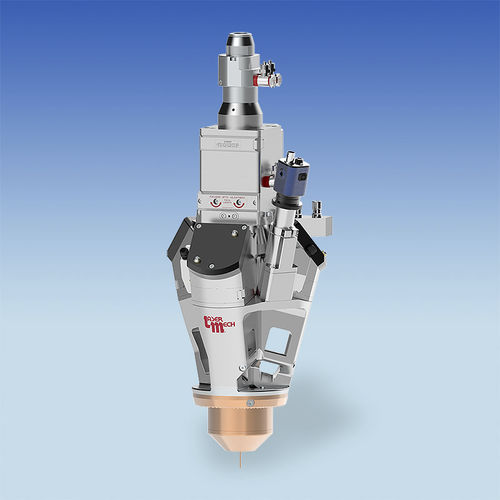

Fiber laser welding head FiberWELD® DHc

high-power

Laser Mechanisms’ FiberWELD® DHc is a compact material deposition head that is engineered for high duty cycle production applications with low to high power, fiber-delivered lasers. The head’s advanced optical design permits wire to be fed directly into the beam path – coaxially to the beam and right into the center of the melt pool. This allows the additive or cladding process to have total directional independence. FiberWELD® DHc also delivers extended beam-on-time for 24/7 operation. • For all fiber-delivered laser systems (Diode, Fiber, Disc) up to 8 kW • Hot wire compliant • Direct-cooled wire feed • All optics are housed in sealed ­compartments to prevent contamination from process smoke and debris • Temperature monitored optics • Cover glass contamination monitoring/warning • Cross-flow air knife • Omnidirectional processing • Direct-cooled, back-reflection protection • Quick and easy access to the cover slide (no tools required) • Direct water-cooled nozzle • Optional camera-based vision and process monitoring Power Rating: up to 8 kW Clear Aperture: 44 mm Collimator Focal Lengths: 100 mm, 125 mm, 150 mm, 175 mm, 200 mm Focal Length: 400 mm Wavelengths (Diode, Fiber, Disc): 900 – 1100 µm Fiber Connections: QD (LLK-D, LCA), QBH (HLC-8), HLC-16 Wire Sizes: 0.6 – 1.6 mm Weight: ~18 kg* (Base configuration. Weight will vary based on options added)
