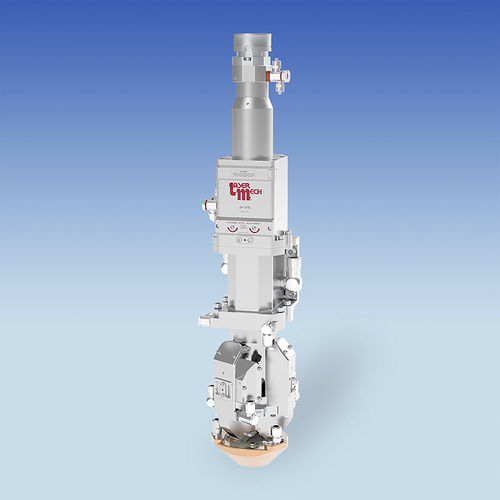

Fiber laser welding head FiberWELD® DHµ

FiberWELD® DHµ is a compact, direct energy deposition (DED) head for medium power, fiber-based laser manufacturing applications. The head features transmissive and reflective optics to maximize space while minimizing focus shift – even in high duty cycle processes. FiberWELD® DHµ’s advanced optical design permits wire to be fed directly into the beam path – right into the ­center of the melt pool. This allows the laser process to have total directional independence. Also, FiberWELD® DHµ’s easily accessible, protective cover glasses extend the life of internal optics. • For most fiber-delivered laser systems (Diode, Fiber, Disc) up to 6 kW • All optics are housed in sealed ­compartments to prevent contamination from process smoke and debris • Temperature monitored optics • High-pressure cross-flow air knifes • Omnidirectional processing • Hot wire compliant • Quick and easy access to the cover slide • Direct-cooled wire feed • Direct-cooled, process heat shield protection Power Rating: up to 6 kW Clear Aperture: 48 mm Collimator Focal Lengths: 100 mm, 150 mm Focusing Optic: 400 mm Wavelengths (Diode, Fiber, Disc): 900 – 1100 µm Fiber Connections: HLC-16, QD (LLK-D, LCA), QBH (HLC-8), LLK-B (Q5) Wire Sizes: 0.8 – 1.6 mm Weight: ~10 kg (Base configuration. Weight will vary based on options added.)
