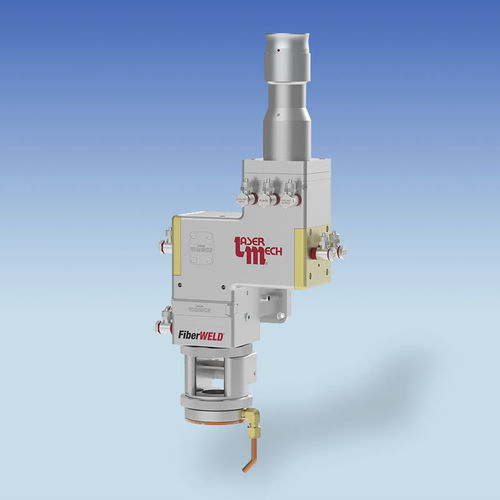

Fiber laser welding head FiberWELD® HR

high-power

Engineered for high duty cycle production welding applications with medium to high-power, fiber-delivered lasers, FiberWELD® HR is a robust head with direct-cooled reflective optics that minimize focus shift. FiberWELD® HR’s easily accessible, protective cover glass helps extend the life of internal optics. Per the end user’s processing requirements, FiberWELD® HR can be configured with straight or right-angle fiber input, camera viewing, wire feed, air knife, weld monitoring and special focusing optics (twin spot and ­rectangular). • Robust, direct-cooled reflective optics minimize focus shift • For all fiber-delivered laser systems up to 30 kW • Available with either a straight laser beam path or left or right-hand, 90° fiber connection • Temperature monitored optics • Cover glass contamination monitoring/warning • Quick and easy access to the cover slide (no tools required) • Cross-flow air knife with 360° adjustment • All optics are housed in environmentally-sealed ­compartments to prevent contamination from process smoke and debris • Compatible with all weld-monitoring systems – including the latest technologies • Available HLAW mounting bracket • Fiber collimator from 100 mm – 200 mm • Focusing optics from 200 mm – 1000 mm Power Rating: up to 30 kW Clear Aperture: 48 mm Collimator Focal Lengths: 100 mm, 120 mm, 150 mm, 200 mm Focusing Mirrors: 200 mm to 1000 mm Optional Custom Optics: Twin Spot, Rectagular Fiber Connections: QD (LLK-D, LCA), QBH (HLC-8), LLK-B (Q5) Weight: ~6 kg (Base configuration. Weight will vary based on options added)
