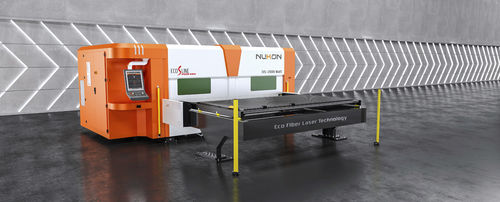

2D laser cutting machine ECO 315

fiber laserfor aluminumfor steel

With its small footprint and low operating costs, it is the most suitable machine series for businesses with limited budget. • 1kW, 2kW, 3kW and 4kW power options. • Unlike conventional rear-loading models, the auto-changing tables are on the side of the machine. • It has a compact design that can be easily installed on an area of just 7m x 7m. AUTOMATION SYSTEMS • Lift Tech have been designed for loading sheets to machines automatically. • Lift Tech has a 180° working angle. In this way, you can supply 2 machines at the same time. • Your machine operates at high efficiency and your production capacity increases with. • Workin Table Height : 820mm/32,2" • Maximum Loading Capacity : 1500 kg/3306 lbs • Acceleration : 12 m/s2 - H15 m/s2 • Positioning Accuracy(Pa)* • ±0,1mm/0,0039” - H0,05mm/0,002" • Shuttle Table Change Time : 16 sec • Controller : 19" Multi Touch Screen • Assist Gas : Oxygen (O2) : 15 Bar • Nitrogen (N2) : 25 Bar • Optional Equipment : -Loading System • -Air Cutting • -Cut Line Technology** • -Linear Motor on X axis
