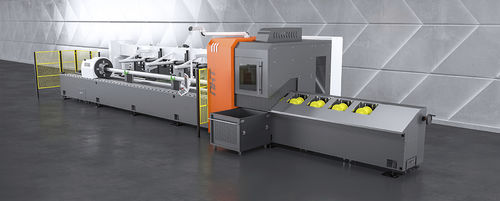

Fiber laser cutting machine NK-T125

3D laserfor aluminumfor stainless steel

Professional pipe and profile cutting machine with a wide range of functional options. • The machine can be produced with 1kW, 2kW and 3kW power options. • The machine is suitable for pipe, square profile, rectangular profile cutting. • The maximum cross section that can be cut in the machine is 125mm x 125mm for profiles and Ø180mm for pipes. • The machine can work for profiles or pipes up to 6500mm in length. FEEDING CHUCK The feeding chuck can hold materials between Ø15-Ø180mm in the center axis precisely. Jaw clamping works with pneumatic drive with adjustable pressure. The profile rotation axis and profile driving axis are servo-motor driven. FRONT CHUCK The front chuck can hold materials between Ø15 and Ø180mm precisely in the center axis with 4 supported roller jaws. Jaw adjustment is done manually. AUTOMATIC LOADING SYSTEM All settings in the system are made manually by the operator according to the cross-sectional dimensions of pipes and profiles. Compatible with loading parts between 3000mm-6300mm. SUPPORTS The supports are the supporting elements that are placed in order to prevent collapse and oscillation of the materials during the cutting according to the cross-section and length dimensions of the pipes and profiles entered into the CNC. All settings are made manually according to the section dimensions. AUTOMATIC UNLOADING SYSTEM The All settings in the system are made manually by the operator according to the cross-sectional dimensions pipes and profiles. As standard, finished parts can be unloaded with a maximum length of 4000mm. Optionally it can be extended to 6000mm.
