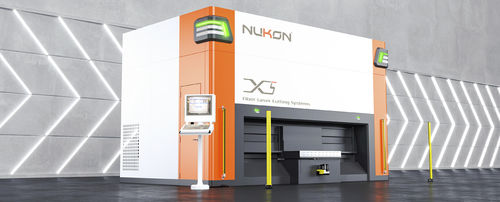

Fiber laser cutting machine X53D laserfor aluminumfor stainless steel
Add to favorites
Compare this product
Characteristics
- Technology
- fiber laser, 3D laser
- Material
- for aluminum, for stainless steel, for steel, for copper, for brass
- Product handled
- sheet metal, tube
- Control type
- CNC
- Applications
- for industrial applications, for metal fabrication
- Workpiece loading
- automated loading/unloading
- Configuration
- 5-axis
- Other characteristics
- automatic, high-precision
- X travel
3,050 mm
(120.08 in)- Y travel
1,300 mm
(51.18 in)- Z travel
600 mm
(24 in)- Maximum cutting height
Max.: 10 mm
(0.4 in)Min.: 3 mm
(0.1 in)- Cutting speed
100,000 mm/min
(65.617 in/s)- Laser power
2,000 W, 3,000 W, 4,000 W
- Acceleration
10 m/s², 17 m/s²
(33 ft/s², 56 ft/s²)- Weight
15,100 kg
(33,289.8 lb)
Description
5 Axes Fiber Laser Cutting Machine
• Installation Area: 6700mm x 7430mm x 3700mm N x L x H)
• Working Range (x,y,z,) : 3050mm x 1300mm x 600mm
• Rotary changer: 4000 mm
• 2kW, 3 kW and 4kW laser power options.
• 2 or 3 stations options.
• The versatile laser cutting station NUKON X5 is developed for cutting wide variety of 3D forming parts by huge working space
• B,C : 90 1/min
• Simultaneous(X,Y,Z) : 17.3m/s2
• B,C : 200rad/s2 - 100rad/s2
• Simultaneous(X,Y,Z) : 17.3m/s2
• Positioning Accuracy : X,Y,Z : 0,1mm
• B,C : 0.015°
• Rotary Changer : Table Diameter : 4000mm/13.12ft
• Changing Time : 2.3 s
• Max. Load : 350 kg/771.6 lbs
• Controller : 19" Multi Touch Screen
• Assist Gas : Oksijen (O2)
• Azot (N2)
