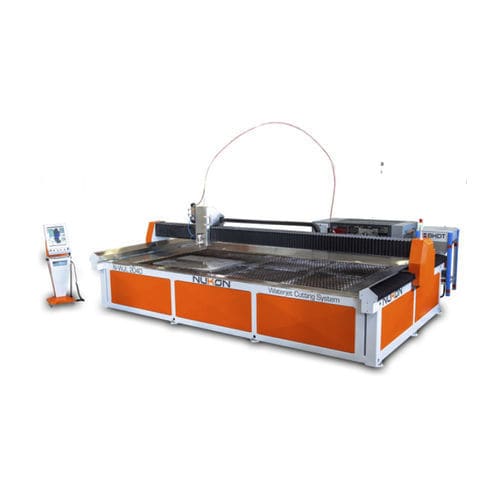

Waterjet cutting machine N-WJL

textilefor aluminumfor titanium

• Water jet is a cutting process in which the cutter is commonly connected to a high-pressure water pump where the water or water-abrasive mixture is ejected sensitively from the nozzle, cutting through the material by spraying it with the jet of high-speed (800 m/s) water. • The ability to cut material with minimizing the effect of the heat as there is no "heat-affected zone", allows metals to be cut without harming and changing Intrinsic Features. • Hard metals such as titanium, tungsten alloys, stainless steel and carbon steels. • Soft metals such as aluminum, copper, brass, zinc and lead. • Materials for construction and decoration industry such as granite, marble, ceramic, glass laminated glass and wood. • Carbon, Kevlar, composites, paper, cardboard, learther, textile, products, gasket materials, Plexiglas, polyester, polyethylene sheets, fiber, plastic and rubber derivatives can be cut with water jet. • Water Jet cutting technology is a method that can cut of all materials on earth from thickness 0.1 mm to 160mm. CNC AND SOFTWARE • PLC based multi-functional 19” color TFT touch screen CNC units are used. • All axis motors consists of digital motors. • It is possible to see the simulation of cutting program and cutting path during operation on the CNC display. • Cutting software is in the CNC unit, It can open dxf and dwg files. • Pressure adjustment, abrasive speed and all other applications can be controlled from a single screen before and during the cutting operation. • Programming can be done with IOS programming standard. • Automatic sorting, font and point marking operations can be done
