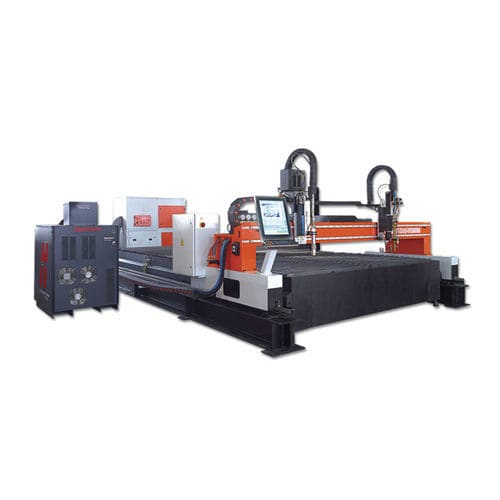

Flame cutting machine FCM-5100

for metalsheet metalCNC

• Bridge cooling: There are under bridge protective steel. Distance 50 mm of at the bridge there is continuous air flow and it reduces the heating of the bridge. • Y motion system: On the H platform and machined rail system and precision gear racks • X motion system: Work has been connected in parallel to the surface with rack and linear rails. Cutting Head Features • Automatic distance control, automatic ignition, oxygen and propane check valves, which prevent flashback, system that protects against shocked sensor (collision), post –crash Machine stop feature. • (TANAKA) Cutting Head: cuts up to 200 mm, fireproof hoses, Solenoid valves Burkert or Parker. (200 mm cutting thickness – on one part) • Machine Speed : mm/min : 30.000 ( positoning speed) • Positioning sensitivity : mm : 0.05 • Repeat sensitivity : mm : 0.01 • Torch Adedi : - : 8 piece plasma station (optionally max. 8 pieces).(oxy-propane) • Distance Control : - : 8 distance control system • Control System : - : Infinity Wesbus (Linatrol - Kanada) • Placement Program : - : Lantek CAD/CAM automatic aligment • Rail system : - : The rail is used on the platform H.
