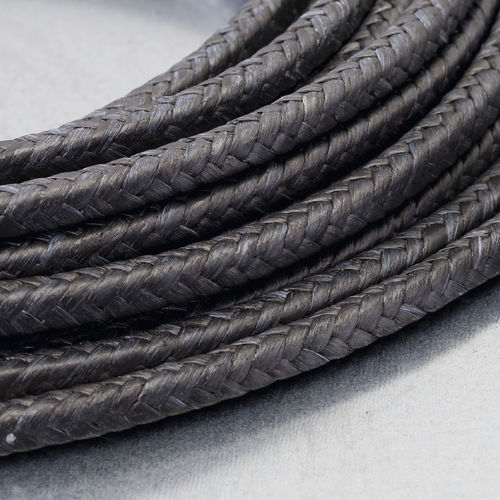

Braided PTFE packing LATTYflon 3207graphitechemical-resistantfor the chemical industry
Add to favorites
Compare this product
Characteristics
- Material
- PTFE, graphite
- Other characteristics
- chemical-resistant
- Applications
- for the chemical industry, for the paper industry, for the food industry, for rotary applications
- Operating temperature
Max.: 250 °C
(482 °F)Min.: -200 °C
(-328 °F)
Description
COST-EFFECTIVE PACKING FOR AGGRESSIVE ENVIRONMENTS FOR DYNAMIC SEALING SOLUTIONS
Packing made of 100% PTFE silk yarns, pre-treated with continuous graphite impregnation then re-impregnated with a silicon lubricant. Available in preformed packing rings, on request. Graphited PTFE packing, dedicated to applications on rotary pumps with chemically aggressive fluids
Fluids : For all fluids
Material : Rotary machines.
Parameters
Speed : < 20 m/s
pH : 0 - 14
Type of industries
All industries.
