Braided PTFE packing LATTYtex 2761graphitefor valvesfor rotary applications
Add to favorites
Compare this product
Characteristics
- Material
- PTFE, graphite
- Applications
- for valves, for rotary applications
- Operating temperature
Min.: -50 °C
(-58 °F)Max.: 260 °C
(500 °F)
Description
COST-EFFECTIVE GRAPHITED PACKING

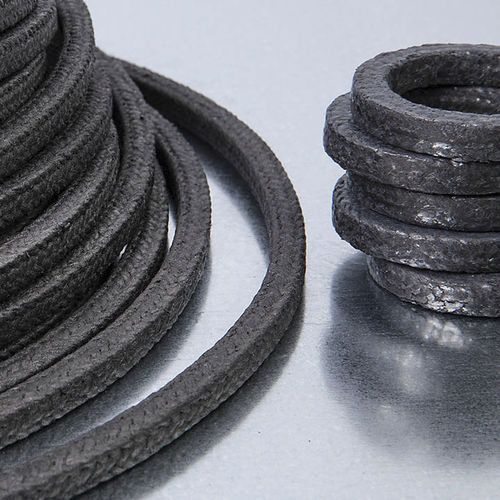

Packing made of special polyacrylic yarns. Each single yarn is impregnated with PTFE using our exclusive "Filcoat"-process. The packing is then re-impregnated during braiding operation in a bath consisting of graphite mixed with special lubricants. Available in preformed packing rings, on request. Graphited synthetic packing for standard applications with rotary machines.
Fluids : Slurry fluids
Material : Rotary machines, low-pressure valves.
Parameters
Speed : < 15 m/s
pH : 1 - 13
Type of industries
All industries using moderately aggressive fluids
