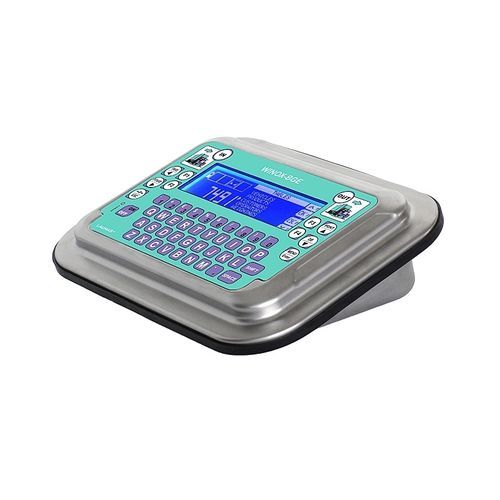

LCD display weight indicator WINOX-BGE

benchtopIP40radio

AISI 304 stainless steel Weight Indicator, dimensions 206 x 286 x 108 mm. IP40 protection rating (D-SUB connectors). 52-key membrane keyboard. Real time clock/calendar. • Ideal for desk mounting • Vehicle weighing: Double weighing (entry and exit), single weighing (entry or exit), double/single weighing with trailer, mutliple weighing (weighing of multi-compartment trucks). Database with 500 vehicles (license plates, predetermined tare), products, customers and operators. Barcode reader management with printing and call-out of the open weighing ID. Up to 10000 weighings that can be saved in alibi memory. Traffic light management via relay outputs. • Backlit graphic LCD display, 133x39 mm, 240x64 pixels • RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol) • 3 logic inputs, 5 relay outputs • 2 USB ports, 1 Ethernet TCP/IP port • OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI • Supported printers: Epson TM-U295, Epson LX300, Custom Kube II, Laumas STAVT II. Other models on request. • A/D converter 24bit (16000000 points) 4.8 kHz • Display range 999999 Some optional features: • Alibi memory (up to 10000 weighed values storable) • Two-way radio transmission
