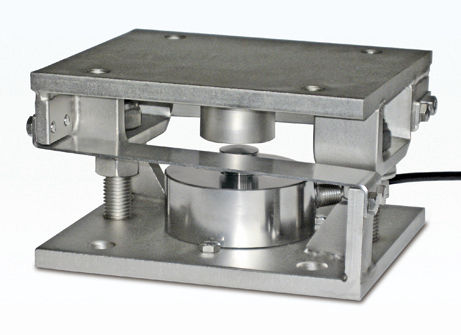

Tank weigh module V10000-275 series

for silos

The sensor with AISI-304 stainless steel weigh modules finds extensive application in silos, tanks, mixing machines, hoppers subject to vibrations because of parts in motion. It is necessary to use the accessory without load cell to ensure correct installation. The installation can also be done by copper wiring. The upper and lower supporting are connected, then lower plates are connected to earthing system and load cell installation is done by taking off the bolts. The nuts are loosened, bolts verified and nuts are turned without touching the sides of hole of the upper plate. The load cells are fixed using bolts without causing increase in weight. The lower plate is to be laid on the supporting surfaces not deformable. High module cells are to be used for simplified installation and ensure optimal accuracy and reliability. The sensor is suitable to measure static and dynamic compressive loads. Its wide range of mechanical accessories makes the sensor versatile.
