4-post lift TLT-450 JA
5 tonpneumaticfor car

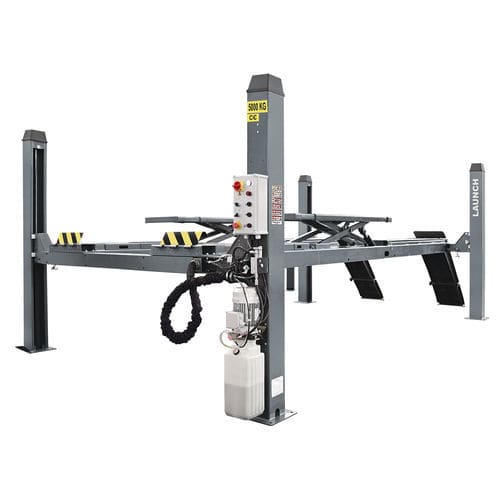

4-post lift - TLT-450 JA - LAUNCH Europe GmbH - 5 ton / pneumatic / for car
4-post lift - TLT-450 JA - LAUNCH Europe GmbH - 5 ton / pneumatic / for car
4-post lift - TLT-450 JA - LAUNCH Europe GmbH - 5 ton / pneumatic / for car - image - 2
Add to favorites
Compare this product


Characteristics

Type
4 posts
Maximum load
5 ton
Operation
pneumatic
Applications
for car
Voltage
24 Vdc
Lifting height

Max.: 1,896 mm
(74.646 in)

Min.: 260 mm
(10.236 in)

Motor power

3 kW
(4.08 hp)

Weight

1,520 kg
(3,351.03 lb)

Description

Optional Wheel-Free jackThe TLT-450 JA is a 4-post lift from LAUNCH Europe’s Premium Line. With an extendable axle lift and side shift plates it is ready for wheel alignment. Note that the turntables are not included in the scope of delivery but can be purchased separately. Equipped with new LED lighting, 24V low-voltage control and an optimised synchronisation process as well as precise levelling for alignment, it offers a wide and comprehensive range of services for your workshop. With a lifting capacity of 5t and a free lift capacity of 3.5t it can lift almost any vehicle. Features LED Lights Good synchronisation process and precise levelling for alignment Position of turntable can be adjusted for different vehicle types Wheel-free jack with mechanical locking: double-sided toothing, pneumatic release An axle jack that can be moved back and forth between the rails is available optional
