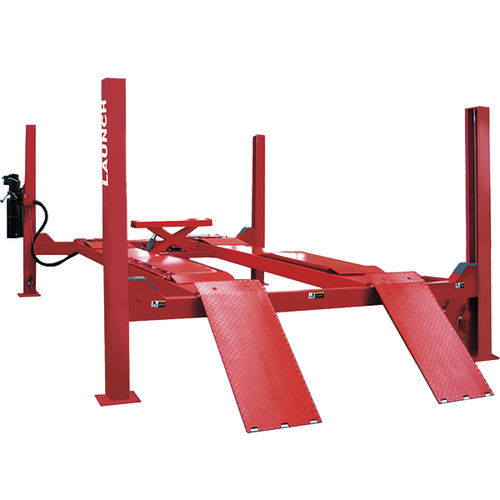

4-post lift TLT-455 W
electro-hydraulicfor carfor trucks

4-post lift - TLT-455 W - LAUNCH Europe GmbH - electro-hydraulic / for car / for trucks
4-post lift - TLT-455 W - LAUNCH Europe GmbH - electro-hydraulic / for car / for trucks
Add to favorites
Compare this product


Characteristics

Type
4 posts
Operation
electro-hydraulic
Applications
for car, for trucks
Voltage
380 V
Other characteristics
platform
Lifting height

Min.: 0 mm
(0 in)

Max.: 1,900 mm
(74.803 in)

Lifting time

Min.: 40 s

Max.: 70 s

Motor power

2.2 kW
(2.99 hp)

Column height

2,172 mm
(85.51 in)

Width between colums

3,445 mm
(135.63 in)

Weight

1,800 kg
(3,968.32 lb)

Description

TLT-455 W The TLT-455 W is an electro-hydraulic 4 post lift with 5,5 t lifting capacity. Manufactured according to international standards in compliance with the CE standard.TLT-455 W The TLT-455 W is ideal for full-service workshops. The 4 post lift can be combined with LAUNCH X-861 3D wheel aligner and is perfectly created for passenger cars and commercial vehicles. Lifting Jack (lifting capacity 2 t), sliding plates and turntable for wheel alignment are already included in the scope of delivery. With a total height of 2.172 mm and a lifting capacity of 5,5 t, heavier SUVs and vans can be lifted here compared to the TLT-440 W lift. Features Distance between the rails can be changed in 3 positions: 1.445 - 1.595 mm Overloading protection, overvoltage protection and protection against line breakage Safety lock in working position Safety valve against burst hoses and foot protection Level compensation of the four lift trucks by means of rope control Electromechanical height limitation Slack rope prevention Scratch-resistant powder coating Suitable for acceptance, wheel alignment, repair and headlight adjustment
