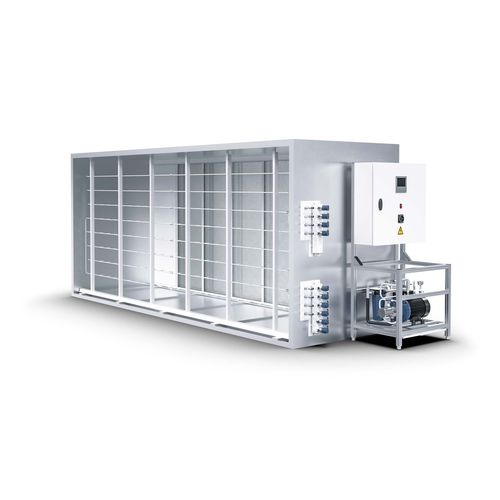

Air humidifier Jetvap®

water sprayfixedhigh-pressure

High pressure humidifier JETVAP® What continuous-flow water spray humidifiers have in common is that the water quantity atomised within the airflow is only slightly greater than the water flow required for humidification. The small percentage of unevaporated water is not recycled and re-atomised, but is channelled to the waste water system as discharge. The humidifier’s injection system is therefore constantly operated by means of fresh water according to the continuous flow principle. A distinction is drawn between high-pressure, medium-pressure and low-pressure humidifiers based on atomisation pressure. High-pressure humidifiers Pressure range: up to 100 bar Pump type: piston pump (water-lubricated) Nozzle type: swirl nozzle with locking function Equipment variants Injection volume control as a combination of pulse-width and pressure modulation Water meter to determine water loss percentage Further accessories for high-pressure humidifiers Especially economical in the case of low to medium increase in humidity (0.0 to 6.0 g/kg) From small to large volumes of air (1,000 to 2,000,000 m³/h) Low cleaning overhead required for adherence to hygienic operating conditions Can be supplied either with stainless steel housing or as installation kit for empty housing Pump station with 2 pumps (redundant design) Several humidification systems can be operated via one pump station (master-slave)
