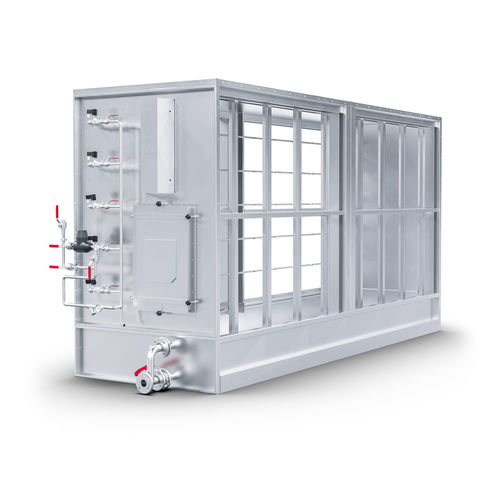

Air humidifier NETVAP®

water sprayfixedhigh-pressure

Low pressure humidifier NETVAP® What continuous-flow water spray humidifiers have in common is that the water quantity atomised within the airflow is only slightly greater than the water flow required for humidification. The small percentage of unevaporated water is not recycled and re-atomised, but is channelled to the waste water system as discharge. The humidifier’s injection system is therefore constantly operated by means of fresh water according to the continuous flow principle. A distinction is drawn between high-pressure, medium-pressure and low-pressure humidifiers based on atomisation pressure. Low-pressure humidifiers Pressure range: up to 5 bar Pump type: no separate pump, system pressure from demineralised water mains Nozzle type: swirl nozzle without lock function Equipment variant Water meter for determining the water loss percentage Application areas for continuous-flow water spray humidifiers, implemented as low-pressure humidifiers Application areas for continuous-flow water spray humidifiers, implemented as low-pressure humidifiers Especially economical in the case of low humidification (0.0 to 1.0 g/kg) From small to large volumes of air (1,000 to 2,000,000 m³/h) Low cleaning overhead required for adherence to hygienic operating conditions Fitting to existing housing of an air handling system
