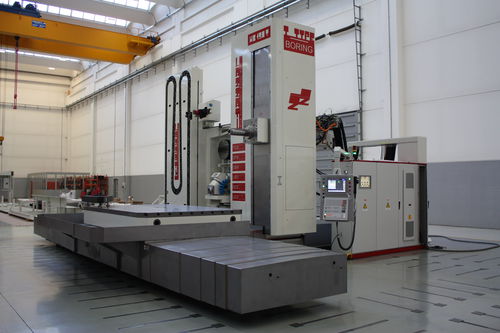

CNC boring and milling center HB 150T Evo4.0

universalrotating table4-axis

TheHB 150T Evo4.0 it is a “T” type morphology machine with two independent and separate beds, rigidly joined by the foundation. A high number of BW Fixatoren levelers and foundation levelling positioned every 500mm, allow maximum rigidity and leveling precision to the two beds. The advantages of the Linea T-Type are: Ergonomic Design : Optimal visibility Easier Access and Placement of Pieces Maximum exploitation of the working area Maximum comfort for the operator Modularity: Rotary Table 40Ton with surface up toB=2.000×3.000mm Maximum customization of placement. Rigidity: Minimum distance from the floor Spindle very close to the center of the table Special design of the two bads:for a perfect fit between table and column Maximum reduction of the distance from the center of the table. Maximum rigidity thanks to the best approach to the piece. Installation of the Machine directly to the floor Lower foundation costs Maximum comfort for the operator Maximum rigidity due to the reduced distance between the spindle and the foundation levelling. Fixed Extended Ram Headstock: Boring Spindle Ø150 travel W=900mm exceed the table center of 200mm. The Head A UA 360 “GradoGrado” exceeds the center of the table both in the horizontal and vertical position Boring and Milling in only one machine: Max. Universality Very high productivity. Possibility of machining the 5 faces of the piece with a single placement. Spindle - - Spindle Taper - ISO - 50 – Big Plus Max. Rotation Speed - RPM - 4.000 Motor Max Torque - Nm - 3.250 Fixed Extended Ram Headstock – Section - mm. - 515 x 510 Rotary Table - - Fixed Extended Ram Headstock – Lenght - mm. - Fix 350
