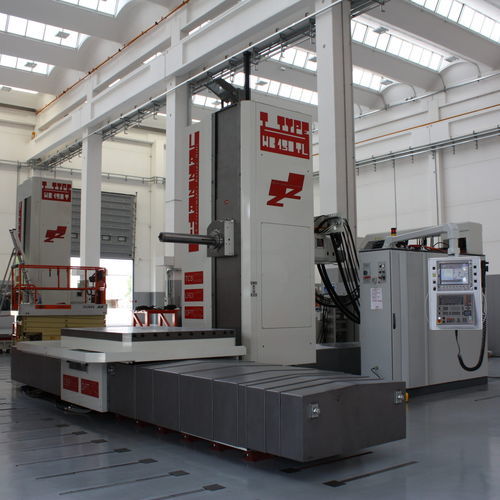

CNC boring and milling center HB 130TL Evo4.0

universalfloorrotating table

The HB 130TL a “T” type morphology machine with two independent and separate beds, rigidly joined by the foundation. A large number of BW Fixatoren levelers and foundation levelling positioned every 500mm, allow maximum rigidity and leveling precision to the two beds . The advantages of the Linea T-Type are: Ergonomic Design : Optimal visibility Easier Access and Placement of Pieces Maximum exploitation of the working area Maximum comfort for the operator Wide Working Range: Rotary Table 15Ton with surface up to B=1.800×2.200mm Maximum customization of placement. Rigidity: High rigidity design of the two beds Compact Design Minimum distance from the floor Spindle very close to the center of the table Special Design of the two beds for a perfect fit between table and bed: Maximum reduction of the distance from the center of the table. Maximum rigidity thanks to the best approach to the piece. Installation of the Machine directly to the floor Lower foundation costs Maximum comfort for the operator Maximum rigidity due to the reduced distance between the spindle and the foundation levelling. Extended Fixes Ram : The Boring Spindle exceeds the center of the table by almost 300mm Max. Universality Very high productivity. Spindle - - Spindle Taper - ISO - 50 – Big Plus Max. Rotation Speed - RPM - 4.000 Motor Max Torque - Nm - 1.200 Fixed Extended Ram Headstock – Section - mm. - 515 x 510 Trevels - - Fixed Extended Ram Headstock – Lenght - mm. - Fix 350 Rotary Table - - Table Surface – B15 - mm. - 1.600 x 2.000 Table Surface – B16 - mm. - 1.800 x 2.200 Max. Admitted Load - Ton. - 15 Feeds - - Workings - mm./1′ - 7.500 Rapids - mm./1′ - 20.000
