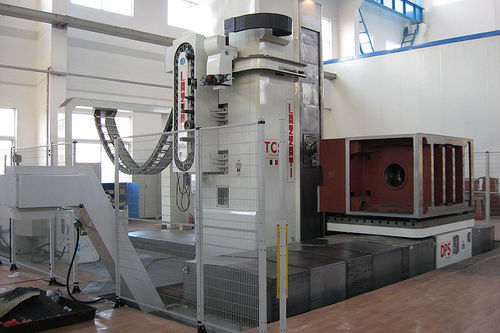

CNC boring and milling center HB 180T Evo4.0

universalrotating tablehigh-precision

The HB 180T a “T” type morphology machine with two independent and separate beds, rigidly joined by the foundation. An high number of BW Fixatoren levellers and foundation levelling positioned every 500mm, allow maximum rigidity and leveling precision to the two beds. The advantages of the Linea T-Type are: Ergonomic Design : Optimal visibility Easier Access and Placement of Pieces Maximum exploitation of the working area Maximum comfort for the operator Modularity: Rotary Table Surface up to B=3.000×3.500 load 60Ton. Maximum customization of placement. Rigidity: Minimum distance from the floor Spindle very close to the center of the table Special design of the two beds:for a perfect fit between table and column Maximum reduction of the distance from the center of the table. Maximum rigidity thanks to the best approach to the piece. Installation of the Machine directly to the floor Lower foundation costs Maximum comfort for the operator Maximum rigidity due to the reduced distance between the spindle and the foundation levelling. Fixed Extended Ram Headstock: Boring Spindle Ø180 travel W=1.300mm exceeds the table center with table surface B=3.000×3.500mm Boring and Milling in only one machine: Max. Universality Possibility of machining the 5 faces of the piece with a single placement. Spindle - - Spindle Taper - ISO - 50 – Big Plus Max. Rotation Speed - RPM - 3.250 Max Torque Spindle Motor - Nm - 4.000 Fixed Extended Ram Headstock – Section - mm. - 515 x 510 Travels - - Fixed Extended Ram Headstock – Lenght - mm. - Fix 450 Rotary Table - - Table Surface – B - mm. - 2.500 x 2.500 Table Surface – B - mm. - 2.500 x 3.000 Table Surface – B - mm. - 2.500 x 3.500
