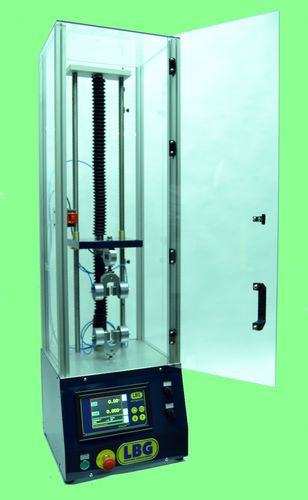

Universal testing machine (A001) TC1

compressiontensilebending

Electromechanical universal testing machine, a single hollow test, developed for the measurement of mechanical strength of the materials under load Electromechanical computerized universal testing machine,TC series single hollow test, developed for the measurementof mechanical strength of the materials under load.Depending on the needs and the types of materials, it canperform testing of tensile, compression, bending, breakingtests, bend, extension, tension, force limit, deformation limit,dishing, etc.., According to the most common internationalstandards ISO, ASTM, EN and UNI. The structure is a strudyfrom two columns and the moving crosshead driven by preloaded ball screws with zero backlash to ensure the accuracyof motion. The movement and the crosshead speed iscontrolled electronically by 24-bit microprocessor. Themachine is controlled through TCSoft2004Plus software forMS® Windows 7 Operating System, at all stages ofdiagnostics, calibration and performance test. The supply included : • Load Cell of 1kN (225 lbf) tensile/compression • Personal computer • Color Deskjet printer A4 format • Manuals instruction • ACCREDIA Calibration certificate LAT • TCSoft2004Plus software ( A007)
