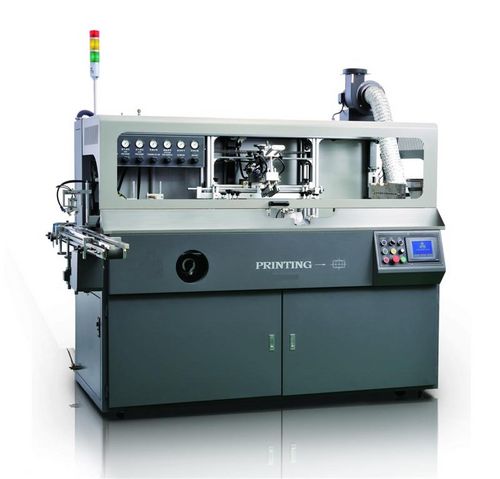

Automatic screen printer S-101

for the plastics industry

This automatic screen printing machine has a printing speed of 4,000 pcs/hr for round prints and an oval printing speed of 5,000 pcs/hr. The round printing size has a diameter of 20-100mm and a length of 25-270mm. The oval printing size has a width of 25-120mm and length of 25-270mm. It uses compressed air at 0.6MPa and Lp gas at 0.15MPa. The unit has dimensions of 1907 x 1000 x 1500mm. The power unit operates at 380VAC 3-phase on 6.5KVA. The test table operates at 220VAC single-phase at 0.2KVA. The packing size is 206 x 123 x 192 cm. The gross weight is 600 kg and the net weight is 550 kg. The automatic bottle scramblers in the loaders system have a pack size of 181 x 161 x 160 cm and gross weight of 1200 kg. This fully-automatic polychromatic screen printer is a multi-purpose device used to print patterns on the surfaces of oval cylindrical bottles and cylinders. By connecting numerous machines or by separating machines, the colors can be fixed or assorted in order to provide the greatest flexibility to meet various customer needs. It uses modern transmission which makes it more stable and versatile, and simplifies the switching to assorted bottles. It is also highly cost-competitive for small and medium industries.
