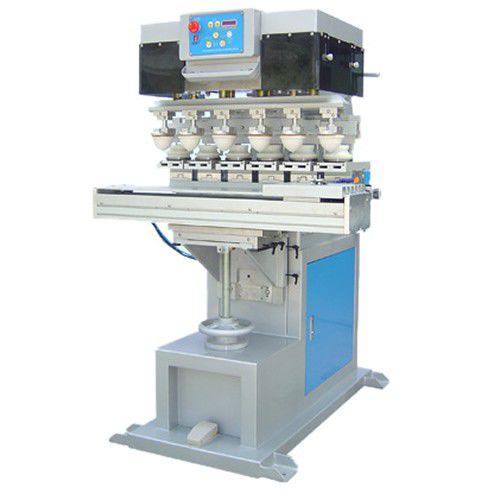

Pad printing machine with closed ink cup M6-250T

6-colorfor the toy industryfor the electronics industry

Ink Cup Six Colour Pad Printing Machine M6-250T Sealed cup six colour pad printer can ensures environmental, safe, it is comply with CE Starderand, ease operateing, to consume ink that frugal. Help to reduce any solvents evaporating from the ink too quickly and also helps to keep the ink at a constant temperature. 1. Controlled by microprocessor, easy operation, running stably and accurately. 2. 4-digit auto counter built-in. 3. Cast aluminum machine frame, low weight and high intensity, turnable machine head. 4. Separate adjustment of the pad up/down stroke speed. 5. Ink scraper is auto balance keeping in printing. 6. With the function of ink scraping nonstop without printing in order to prevent the ink from drying. 7. Ink cup is turnable and adjustable in vertical and horizontal direction. 8. With super long slide stroke to print large size workpiece. Sealed Cup Six Colour Pad Printer whit Lifted Head 1. Model No:M6-250T 2. Operation: Pneumatic 3. Printing Colors: 6 4. Max. Printing area: 80*135mm 5. Plate area: 100*250 mm 6. Sealed ink cup diameter: 60 or 90 mm 7. Max printing speed: 1400PCS/H 8. Wattage: 220V/ 50Hz 110V/60Hz 9. Air pressure: 6 Bar 10. Machine size: 100×105×155cm 11. Machine weight:265kg 12. Packing size:105*110*160cm 13. Goss Weight:340KG Machine fitting: 1. Four pcs steel plate 2. Four pcs rubber pad 3. Work box 4. English operating instruction Price Terms︰ FOB GuangZhou Payment Terms︰ T/T WESTUNION Packing︰ WOODEN CASE Lead Time︰3 DAYS AFTER PAYMENT Standards Certificate︰ CE Machines Fittings ︰ SILICONE RUBBER PADS,
