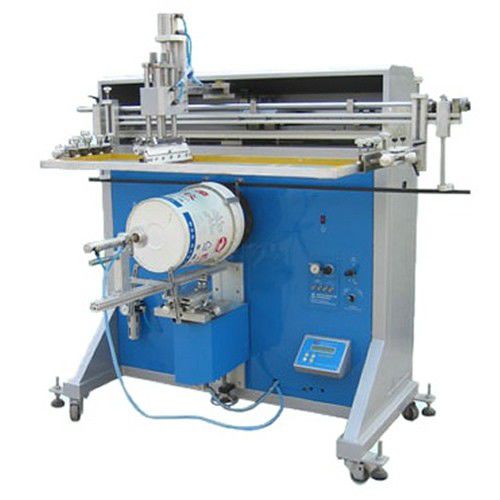

Automatic screen printer 1100

colorfor textilesfor the glass industry

Bucket Screen Printing Machine Specifications: 1:Max.printing size:φ330x350mm  2:Max.Frame Size:1180*380mm  3:Machine size(LxWxH):1730x1250x1730mm  4:Net Weight:290kg  5:Air Pressure(bar):5-7  6:Power: 220V/50Hz 110V/60HZ, 60W 7.Max product arc length:1170mm 8.Max printing speed:800Pcs/Hr 9.Packing size: 186*105*190CM(LxWxH) 10.Gross/Net weight:700kg/600kg 11.Volume Weight:745KG Advantages: 1.Microprocessor controls each function with high automation and easy operation; 2.5 digit auto counter built in; 3.It has function of cylindrical printing and conical printing; 4.Auto ink scraping and flooding and worktable elevating make operation easy and ensure stable printing quality; 5.printing stroke and speed are adjustable to meet different printing requirements; 6.Auto balanced squeegee ensures equalized printing pressure; 7.Worktable can be adjustable up/down,left/right and rotated slightly. Screen frame can be finely adjusted forward/backward, left/right and up/down. Printing precision is high and adjustment easy; 8.Squeegee can be finely adjusted left/right.Substrate alignment is quick and precise; 9.Safety hood is equipped to meet European safety standard and ensure safety. 10. Pneumatic part of the installation of the German "FESTO" Parts,Separate adjustment speed. Machine Fittings: 1. One frame, 2. One tool box, 3. 1 inch squeegee. 4. One fixture. Application Scope: 1100 Screen Printing Machine, which is fit for printing on the big diameter round products such as paint and water buckets etc.
