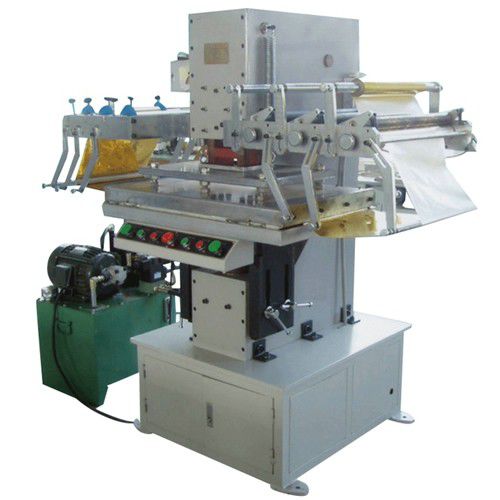

Electro-pneumatic hot foil stamping machine H-TC-60T

for large print areaswith automatic feederfor leather

Product name:Large Size Hydraulic Hot Stamping Machine Model Number: H-TC-60T Description: Large Size Hydraulic Hot Stamping Machine Technical parameters: 1 Power : 380V 50HZ 2 Stamping area 400 * 600mm 3 Table area: 520 * 800mm 4 Heating power: 6400W 5 Motor power : 3700W 6 Maximum pressure: 60T 7 Bronzing thickness ≤ 75mm 8 Stamping temperature: room temperature 0-300°C, adjustable 9. Feeding: electric 10 Center distance: 320mm 11 Hot plate stroke :80mm 12. Transfer time of 0-99 seconds 13 Fuel tank capacity: 60L 14 Weight: 1000Kg 15 Dimensions: 1200 * 1000 * 1600mm 16.Quality / Safety Certification: ISO9001-2000 17:Packing size(2 Cases) Machine packing size:130*120*176cm Hydraulic Pump packing size:70*60*95cm Advantages : 1 Electrical control, easy to operate. 2 Hydraulic drive, connecting rod design, powerful stamping pressure. 3 Workbench adjustable up and down, and convenient height stamping. 4 Stamping pressure, temperature, speed adjustable. 5 Automatic document feeder, the collection of paper, and adjustable. 6. Volumes foil device may require 1-3 group can. Product Description: Paper, cardboard, leather, PVC, plastic, wood and other materials for large area flat stamping, transfer, since convex, indentation, branding press. Stamping process the matters needing attention: 1.According to the different varieties of scalded object, select the appropriate hot stamping foil.Good sized must master the temperature, pressure, stamping speed three party coordination, and according to the short-run printing materials, area of difference. 2.The cutting knife should grasp the direction and speed of car;
