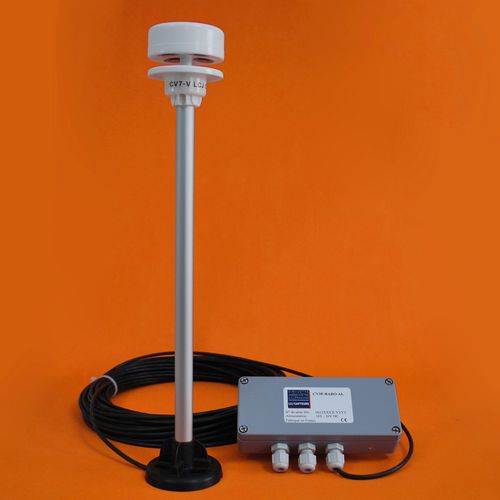

Ultrasonic anemometer CV7-V-420_AL

staticwind vane

This sensor comes with a mounting arm specifically designed for easy installation on any horizontal surface such as the cabin roof, a radar arch or a flybridge. The CV7-V can also be installed on a sailboat where there is not enough space on the masthead. The arm can be fixed to the side of the mast. The CV7-V’s bracket is compatible with Glomex© type mounting bases. The small size of this sensor makes it very discreet. This sensor can be set up to match the requirements all kinds of slow or fast boats. ICV7-V can be used connected to a PC and any systems featuring an NMEA® input port and specific pieces of equipment using conventional formats. In PC mode, this bidirectional sensor can be set up for angle correction, damping, measure units and interface format. option Box 420 24V DC - box with 2 outputs 4-20mA  0-40 m/s  0-359° wind direction - Power supply: 24VDC - Galvanic insulation:  between power supply and analogic outputs
