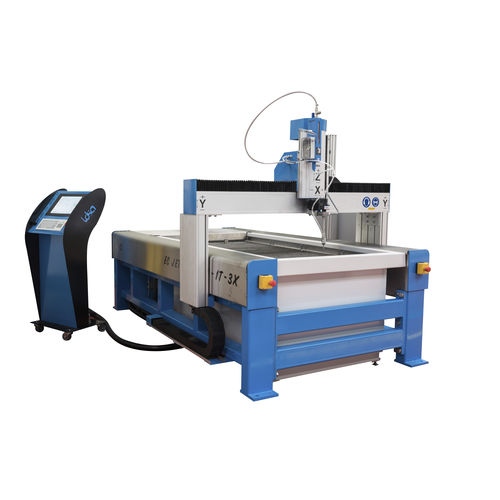

Abrasive water-jet cutting machine ECJET III
pure water-jetfor metalfor plastics

Abrasive water-jet cutting machine - ECJET III - LDSA - pure water-jet / for metal / for plastics
Abrasive water-jet cutting machine - ECJET III - LDSA - pure water-jet / for metal / for plastics
Abrasive water-jet cutting machine - ECJET III - LDSA - pure water-jet / for metal / for plastics - image - 2
Add to favorites
Compare this product


Characteristics

Technology
abrasive water-jet, pure water-jet
Material
for metal, for plastics, for wood, for leather, for stone, for composite materials
Product handled
sheet metal
Control type
CNC
Applications
for industrial applications, for metal fabrication, for the automotive industry, for aeronautical applications
Workpiece loading
manual loading
Phase
three-phase
Configuration
compact, bridge, single-head, 2D, double-head, 3-axis
Other characteristics
high-precision, precision, CE, economical, ISO, for thin materials, for structural steel, multi-ply
X travel

Min.: 1,000 mm
(39.37 in)

Max.: 2,000 mm
(78.74 in)

Y travel

Min.: 1,000 mm
(39.37 in)

Max.: 3,000 mm
(118.11 in)

Z travel

150 mm
(6 in)

Cutting speed

30,000 mm/min
(19.685 in/s)

Repeatability

0.05 mm
(0.002 in)

Operating pressure

4,150 bar
(60,190.66 psi)

Overall length

2,000 mm, 4,000 mm
(79 in, 157 in)

Overall width

2,000 mm, 3,000 mm
(79 in, 118 in)

Description

LDSA, French leader, Designer and Manufacturer of Water Jet Cutting Centre, presents its new generation of table type “ECJET III” 3 axes. Economic Standard Version, it accepts very few options, and cannot be upgraded over time! The assembly is driven by a latest generation CNC FANUC (No.1 Global) allowing ease of use and offering a previously unequalled level of Reliability and Precision. The very high pressure water supply (4150B Maxi for this model) is supplied by a BFT pump (European No. 1) or KMT (No. 1 Global). The Human/Machine interface is customizable, like the CNC, it is fully programmed internally by our Design Office and managed under Windows 10 PRO. The system is intended to operate autonomously. The numerous sensors allow control and remote control of the system via a computer network and via the internet. The equipment is very compact and uses only high quality mechanical and electrical components for increased reliability. ADVANTAGES Unique High Precision Head concept, 3-Axis 2D (Only). High precise head adjustment and positioning. Ease of use. COMPACT model (space saving in workshop) Complete equipment delivered turnkey. Quick on-site installation (5 days included in the price). Multi-Materials Cutting with Abrasive or without (Pure Water) ONLY 3-Axis. Reliable and robust. Up to 2 cutting heads, on 1 bridge. GENERAL CHARACTERISTICS 3-AXIS MACHINE 3 digitised simultaneous X/Y/Z axis, Z can vary during cutting. Digital servo + servo motors + motion control provided by 1 million point absolute encoders, high speed servo bus controlling I/O and fibre optic link between HMI and CNC. CNC FANUC series 0i OPEN version. FANUC Beta series motors

VIDEO
