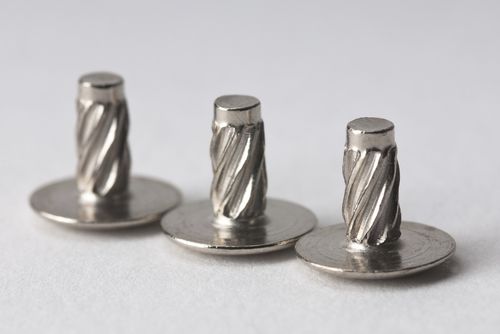

Round head rivet P series
stainless steelredgray

round head rivet
round head rivet
Add to favorites
Compare this product


Characteristics

Head
round head
Material
stainless steel
Color
gray, red
Other characteristics
hammer
Body diameter

Max.: 4.6 mm
(0.18 in)

Min.: 2.3 mm
(0.09 in)

Head diameter

Max.: 10.25 mm
(0.4 in)

Min.: 5.35 mm
(0.21 in)

Description

This rivet is formed in one piece and consists of a body having a helical thread, performing a deformation in the support where it is introduced.The visible round head secures relatively thin parts in all support. Implementation Nature, thickness of materials to be fixed (Fine identification plate). The assembly can be done in a blind hole. Drilling support and drilling piece to be fixed. The assembly is done manually with traditional tools (hammer, mallet or small hand press). Application Maintain the identification plates. Materials Hammer drive rivets in tempered case hardened, Stainless 304CU. Standard finish Nickel plating. On request, we can supply all our productions unplated, zinc coating or brass plated. finish.
