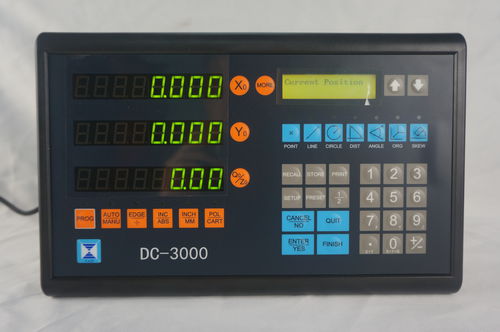

Position indicator DC-3000

digitalpanel-mountRS-232

Name: - Geometric Measurement Readouts（DC-3000） Model: - DC-3000 Usages This digital readout is idea for the measurement and inspection of 2-D geometric components and can be used with inspection tools such as optical comparators, optical edge detection, measuring microscopes, coordinate measuring machines and video systems. Features • Inch/metric conversion • Incremental or absolute measurement • Zero reset • Linear error correction and Segment error correction • RS232 interface data output to PC or Printer • Skew function for part alignment correction • Single key calculation for common functions • Polar or Cartesian coordinates • Part programming allows creation, editing, and running of programs in measurement sequence • Point, line, Arc, Circle, Distance, and Angle measuring ability • Measurement data print capabilities • Feature construction capabilities • Allows operators to accomplish simple to complex measurements quickly and easily • Preset function • With foot switch or edge detector, can quickly capture the data • Z can be connected with scale or encoder • Footswitch and printers help to capture the precise measurement data more conveniently • As standard, DC3000 can accommodate English, Chinese, Portuguese
