Horizontal optical comparator HOC400
digital

Horizontal optical comparator - HOC400 - Leader Precision Instrument Co. Ltd - digital
Horizontal optical comparator - HOC400 - Leader Precision Instrument Co. Ltd - digital
Horizontal optical comparator - HOC400 - Leader Precision Instrument Co. Ltd - digital - image - 2
Add to favorites
Compare this product


Characteristics

Options
digital, horizontal

Description

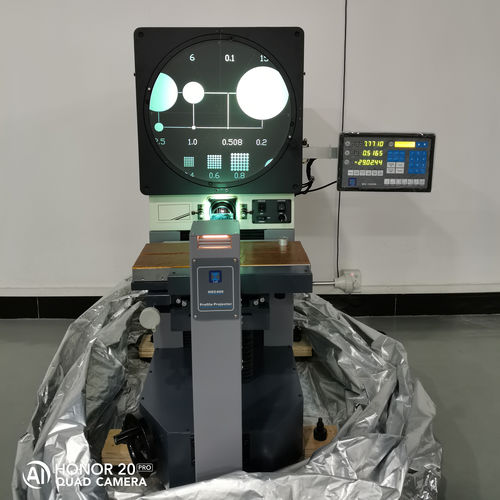

Name: - Horizontal Optical Comparator(HOC400) Model: - HOC400 Specification • Screen size for Horizontal Optical Comparator: ¢400mm with 4 film clips • Travel-X.Z axis: 250mm*150mm • Travel-Y: 100mm • Stage size: 450mm*200mm • Stage load capacity: 30kg • Net weight: 240kg • Object lens:5x.10x.20x.50x.100x. (standard 10x), reflector attached • Magnification accuracy: 0.08% contour, 0.12% surface • Transmission illumination: 24v/150w halogen bulbs for contour • Reflection illumination: 21v/150w halogen bulbs for surface(pairs of fiber optic lighting) • Power supply: AC110-120v, 200-240v, single phase 50/60Hz • Linear scale-X. Y axis: 0.5µm resolution • Angle measuring: 0.01°or 1′resolution • Accuracy: (2.5+L/150)µm, L = length of the work piece measured ( unit: mm) • Repeatability: 0.003mm • Transmission: linear guide, fits fast moving • Digital readout: Metrology counter with RS-232C output Features • Skew • MM/INCH conversion • ABS/INC conversion • Zero setting • 1/2 calculation • 0° 90° 270° 360° conversion • Linear compensation • RS-232C output • Geometric measurement
