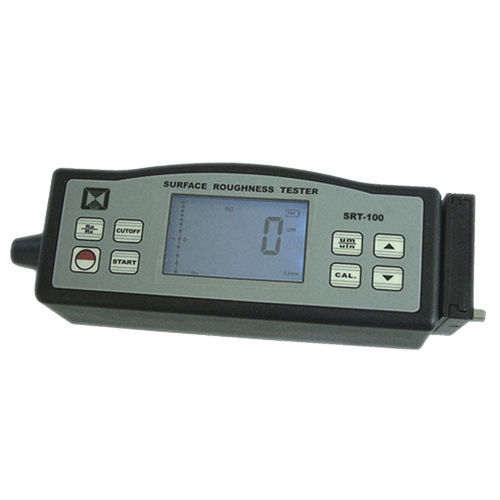

The Leader Precision SRT-100 Surface Roughness Tester 1 conforms to all international standards DIN, ISO, ANSI and JIS. It offers RS232C output with a quick charge battery pack and a handy auto off function.
It has a Ra measurement parameter and with a measuring range of 0.050 -10.00μm/1.000 -400.0μin Rz: 0.020-100.0μm/0.780-4000μin that has an accuracy of ±10% and a repeatability of 6%.
The unit has an LCD with blue backlight display. The unit has a 10μ radius of probe pin with a diamond probe pin that has a 16mN measuring force and a 90º probe angle.
It has a 48mm/1.9" vertical radius of guiding head with a 17.5mm/0.7”maximum stroke and a 0.25mm/0.8mm/2.5mm cut-off.
