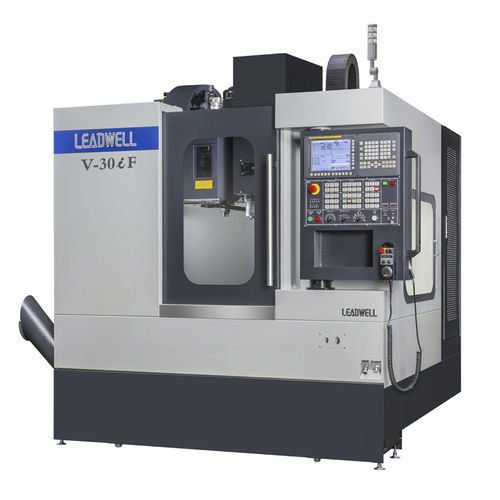

3-axis CNC machining center V series verticalwith rotary table24 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- with rotary table
- Number of tool stations
- 24 tools, 30 tools
- Other characteristics
- high-rigidity
- X travel
510 mm, 800 mm
(20.08 in, 31.5 in)- Y travel
420 mm, 460 mm
(16.54 in, 18.11 in)- Z travel
510 mm
(20.08 in)- Rotational speed
10,000 rpm, 12,000 rpm
(62,832 rad.min-1, 75,398 rad.min-1)- Power
11 kW, 15 kW
(14.96 hp, 20.39 hp)- Work feed X-axis
48,000 mm/min
(31 in/s)- Work feed Y-axis
48,000 mm/min
(31 in/s)- Work feed Z-axis
36,000 mm/min
(24 in/s)- Tool-changing time
1.8 s, 4 s
Description
*FEA Analysis
High Reliability:
*Roller type motion system
High Efficiency:
*V-32A.V-42A.V-52A with high torque spindle motor
High Flexibility:
*4/5 axis rotary table available
*Front/Rear Chip Disposal available
