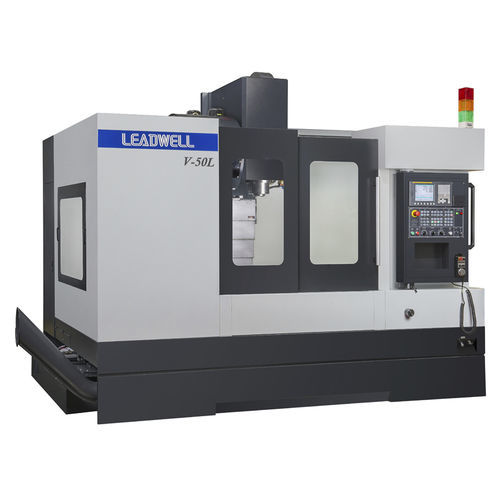

3-axis CNC machining center NV series verticalwith rotary table24 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- with rotary table
- Number of tool stations
- 24 tools, 30 tools
- Other characteristics
- high-rigidity
- X travel
1,020 mm, 1,270 mm, 1,520 mm, 2,040 mm
(40.16 in, 50 in, 59.84 in, 80.31 in)- Y travel
635 mm, 800 mm, 1,000 mm
(25 in, 31.5 in, 39.37 in)- Z travel
610 mm, 720 mm
(24.02 in, 28.35 in)- Rotational speed
10,000 rpm, 12,000 rpm, 15,000 rpm
(62,832 rad.min-1, 75,398 rad.min-1, 94,248 rad.min-1)- Power
15 kW, 18.5 kW
(20.39 hp, 25.15 hp)- Work feed X-axis
48,000 mm/min
(31 in/s)- Work feed Y-axis
48,000 mm/min
(31 in/s)- Work feed Z-axis
48,000 mm/min
(31 in/s)- Tool-changing time
1.8 s, 4 s
Description
*FEA Analysis
*Dual nuts ball screw deiwgn in X and Y axis
*Saddle one piece design
High Reliability:
*Roller type motion system
*One piece telescope design in rear Y axis
*Ball screw bearing lubrication system design
*Front chip disposal system with surrounding coolant system
High Efficiency:
*Tool change time C to C 4sec
High Flexibility:
*4/5 axis rotary table available
