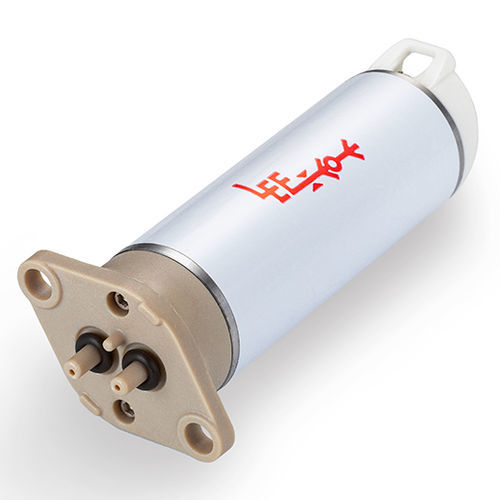

Diaphragm pump LPGA series

for LPGsolenoid-drivenself-priming

This compact (25 mm), solenoid-driven fixed volume dispense pump is available in 100 µL and 175 µL standard models, with other dispense volumes available upon request. Featuring a compact, chemically inert, self-priming design, this pump aspirates an accurate volume of fluid when the solenoid is energized and dispenses the full volume of fluid when de-energized. Integrated check valves, together with a unique housing design and diaphragm seal, prevent siphoning when the dispense point is positioned above the fluid reservoir. Each pump is customizable and 100% tested to ensure performance. Features: Chemically Inert Self-Priming Maintenance Free Design Dispense Volume Range: 100 – 175 µL Anti-Siphoning Design Low Power Consumption
