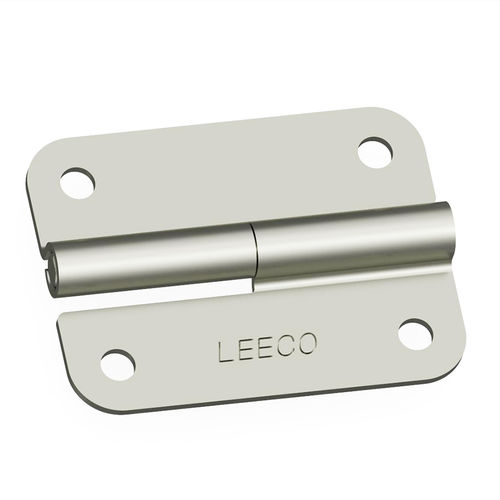

Constant-torque hinge QA7steelscrew-innickel-plated
Add to favorites
Compare this product
Characteristics
- Type
- constant-torque
- Material
- steel
- Installation
- screw-in
- Finish
- nickel-plated
- Opening angle
- 270°
- Applications
- door, for panels
- Other characteristics
- asymmetrical, torque-resistant
- Length
50.6 mm
(1.992 in)- Width
38.1 mm
(1.5 in)- Thickness
7 mm
(0.276 in)- Torque
1.8 Nm, 2.3 Nm, 2.7 Nm
(1.33 ft.lb, 1.7 ft.lb, 1.99 ft.lb)
Description
Applications:
-- Display panels, hinged doors, industrial enclosures, headrest cushions, office equipment, housing appliance, medical equipment, seating…
Torque ratings:
-- Asymmetric: 1.8, 2.3 and 2.7Nm - (high torque direction)
Cycle life:
-- Over 25,000 cycle life within ±20% of static torque specification
Materials:
-- Steel and grease
280 degree shaft rotation
Plating finish
M4 or #8 screw mounting hole
Zero backlash
Minimal springback
RoHS and REACH compliant
Custom torque is available
