- Constant-torque hinge
- LEECO Technologies Corporation

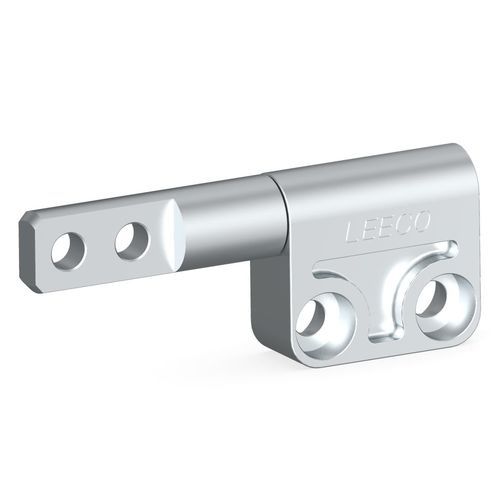

Constant-torque hinge CT10Bsteeldie-cast zincscrew-in
Add to favorites
Compare this product
Characteristics
- Type
- constant-torque
- Material
- steel, die-cast zinc
- Installation
- screw-in
- Finish
- nickel-plated
- Opening angle
- 360°
- Applications
- door, for panels
- Other characteristics
- asymmetrical, torque-resistant
- Length
27.7 mm
(1.091 in)- Width
13 mm
(0.512 in)- Thickness
10 mm
(0.394 in)- Torque
Max.: 3.4 Nm
(2.51 ft.lb)Min.: 0 Nm
(0 ft.lb)
Description
Applications:
Display panels, hinged doors, industrial enclosures, headrest cushions, office equipment, housing appliance, medical equipment, seating…
Torque ratings:
Symmetric: 0.9 - 2.7Nm
Asymmetric torque: 0.8 - 3.4 Nm
Cycle life: Over 25,000 cycle life within ±20% of static torque specification
Materials: Zinc alloy, steel and grease
360 degree shaft rotation
Nature finish
M4 or #8 screw mounting hole
Zero backlash
Minimal or no springback
RoHS and REACH compliant
