Constant-torque hinge QM10C
zamakzinc-coated steelscrew-in

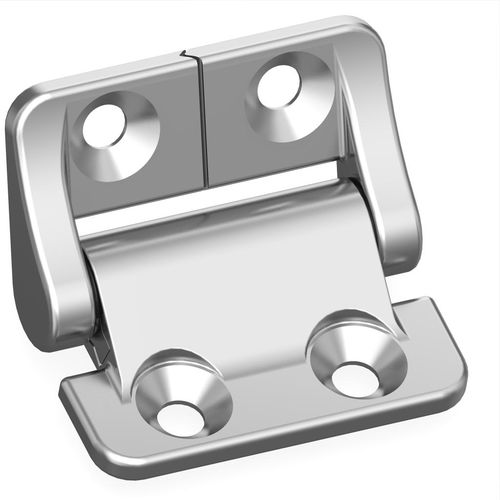

Constant-torque hinge - QM10C - LEECO Technologies Corporation - zamak / zinc-coated steel / screw-in
Constant-torque hinge - QM10C - LEECO Technologies Corporation - zamak / zinc-coated steel / screw-in
Add to favorites
Compare this product

Go to the LEECO Technologies Corporation website for more information

Characteristics

Type
constant-torque
Material
zamak, zinc-coated steel
Installation
screw-in
Finish
painted
Opening angle
270°
Applications
door, for panels
Other characteristics
asymmetrical, torque-resistant
Length

38 mm
(1.496 in)

Width

40 mm
(1.575 in)

Thickness

10 mm
(0.394 in)

Torque

Max.: 3.4 Nm
(2.51 ft.lb)

Min.: 0 Nm
(0 ft.lb)

Description

Applications: Display panels, hinged doors, industrial enclosures, headrest cushions, office equipment, housing appliance, medical equipment, seating… Torque ratings: Symmetric: 0.0, 0.9, 1.4, 1.8, 2.3 and 2.7Nm Asymmetric: 1.4, 1.8, 2.3, 2.7 and 3.4Nm - (high torque direction) Cycle life: Over 25,000 cycle life within ±20% of static torque specification Materials: Zinc alloy, steel, grease and o-ring Oil ring seals for protection against environment contamination 270 degree shaft rotation Nature or black paint finish M4 or #8 screw mounting hole Zero backlash Minimal or no springback RoHS and REACH compliant
