- Friction hinge
- LEECO Technologies Corporation

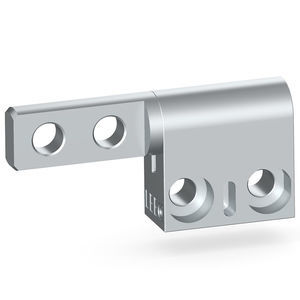

Friction hinge BH10Sstainless steelscrew-in360°
Add to favorites
Compare this product
Characteristics
- Type
- friction
- Material
- stainless steel
- Installation
- screw-in
- Opening angle
- 360°
- Applications
- door, for panels, for cases
- Other characteristics
- rotating, torque-resistant
- Length
57.2 mm
(2.252 in)- Width
10 mm
(0.394 in)- Thickness
10 mm
(0.394 in)- Torque
0.5 Nm, 1 Nm, 2 Nm
(0.37 ft.lb, 0.74 ft.lb, 1.48 ft.lb)
Description
Stainless Steel 316 Friction Hinge, Medical grade and Barrel type. Max torque is 2.0Nm. Life is 25,000 cycles with torque tolerance at +-25% over life.
APPLICATIONS: Display panels, hinged doors, industrial enclosures, headrest cushions, office equipment, housing appliance, medical equipment, seating, marine…..
TORQUE RATINGS: Symmetric: 0.5, 1.0, and 2.0 Nm
- 360 degree shaft rotation
- Nature stainless steel finish
- M4 or #8 screw mounting holes
- Zero backlash
- Minimal or no springback
- RoHS and REACH compliant
- Customized torque is available
Other LEECO Technologies Corporation products

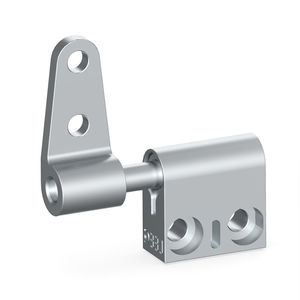

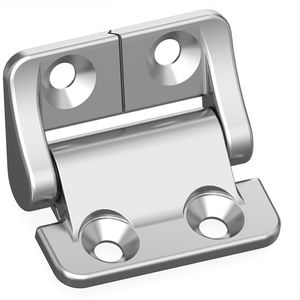

Friction Hinge
