- Friction hinge
- LEECO Technologies Corporation

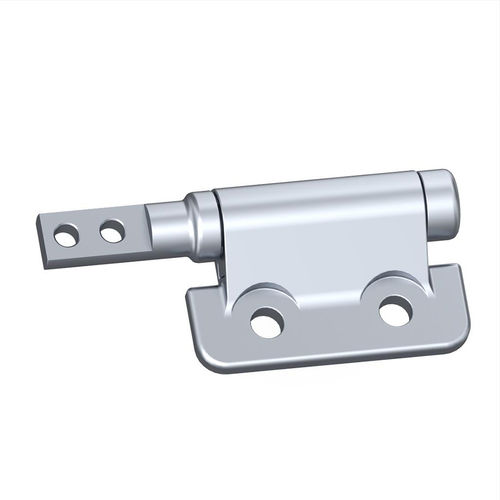

Friction hinge QM10Asteelzinc alloyscrew-in
Add to favorites
Compare this product
Characteristics
- Type
- friction
- Material
- steel, zinc alloy
- Installation
- screw-in
- Finish
- painted
- Opening angle
- 360°
- Applications
- door, for panels, for cases
- Other characteristics
- torque-resistant, asymmetrical
- Length
57.15 mm
(2.25 in)- Width
25 mm
(0.984 in)- Thickness
10 mm
(0.394 in)- Torque
Max.: 3.4 Nm
(2.51 ft.lb)Min.: 0 Nm
(0 ft.lb)
Description
Friction Hinge in natural finish plus plating finish and black paint finish plus plating finish. Max torque is 3.4Nm. Life is 25,000 cycles with torque tolerance at +-25% over life.
APPLICATIONS: Display panels, hinged doors, industrial enclosures, headrest cushions, office equipment, housing appliance, medical equipment, seating, marine…..
TORQUE RATINGS:
-- Symmetric: 0.0, 0.9, 1.4, 1.8, 2.3 and 2.7 Nm
-- Asymmetric: 1.4, 1.8, 2.3, 2.7 and 3.4 Nm - (high torque direction)
- Oil ring seals for protection against environment contamination
- 270 degree shaft rotation
- M4 or #8 screw mounting holes
- Zero backlash
- Minimal or no springback
- RoHS and REACH compliant
- Customized torque is available
