- Friction hinge
- LEECO Technologies Corporation

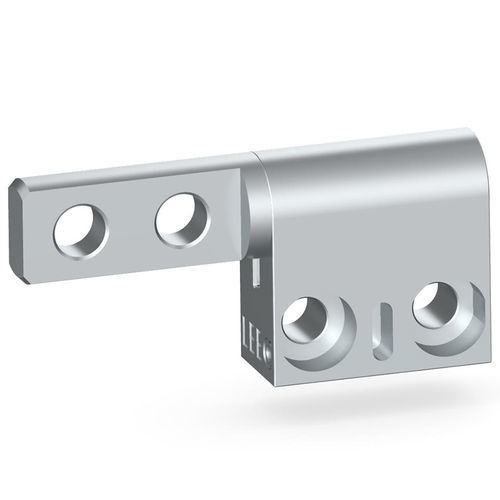

Friction hinge QM7Bsteelzinc alloyscrew-in
Add to favorites
Compare this product
Characteristics
- Type
- friction
- Material
- steel, zinc alloy
- Installation
- screw-in
- Opening angle
- 360°
- Applications
- for panels
- Other characteristics
- small, torque-resistant, asymmetrical
- Length
31.5 mm
(1.24 in)- Width
15 mm
(0.591 in)- Thickness
7 mm
(0.276 in)- Torque
Max.: 1.1 Nm
(0.81 ft.lb)Min.: 0.2 Nm
(0.15 ft.lb)
Description
The QM7 series is a range of friction hinges that are made up of zinc alloy, steel and grease.
The friction hinges feature nature or black paint finish. The cycle life is over 25,000 cycles within ±20% of static torque specification.
APPLICATIONS:
-- Display panels, industrial enclosures, office equipment, housing appliance, medical equipment…
TORQUE RATINGS:
-- Symmetric: 0.5, 0.7 and 0.9Nm
-- Asymmetric: 0.7, 0.9 and 1.1Nm - (high torque direction)
360 degree shaft rotation
Nature or black paint finish
M2.5 or #4 screw mounting hole
Zero backlash
Minimal or no springback
RoHS compliant
Customized torque is available
Partial design customization on this friction torque hinge is also available
