- Friction hinge
- LEECO Technologies Corporation

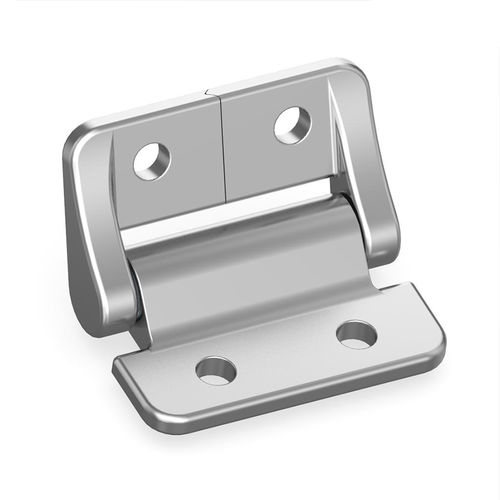

Friction hinge QM10Sstainless steelscrew-in270°
Add to favorites
Compare this product
Characteristics
- Type
- friction
- Material
- stainless steel
- Installation
- screw-in
- Opening angle
- 270°
- Applications
- door, for panels, for cases
- Other characteristics
- torque-resistant
- Length
40 mm
(1.575 in)- Width
38 mm
(1.496 in)- Thickness
9.4 mm
(0.37 in)- Torque
Max.: 5 Nm
(3.69 ft.lb)Min.: 0 Nm
(0 ft.lb)
Description
Stainless Steel 316 Friction Hinge, Medical grade. Max torque is 5.0Nm. Life is 25,000 cycles with torque tolerance at +-25% over life.
APPLICATIONS: Display panels, hinged doors, industrial enclosures, headrest cushions, office equipment, housing appliance, medical equipment, seating, marine…..
TORQUE RATINGS: Symmetric: 0.0, 1.0, 2.0, 3.0, 4.0 and 5.0 Nm
•Oil ring seals for protection against environment contamination
•270 degree shaft rotation
• Nature stainless steel finish
• M4 or #8 screw mounting holes
• Zero backlash
• Minimal or no springback
• RoHS and REACH compliant
• Customized torque is available
