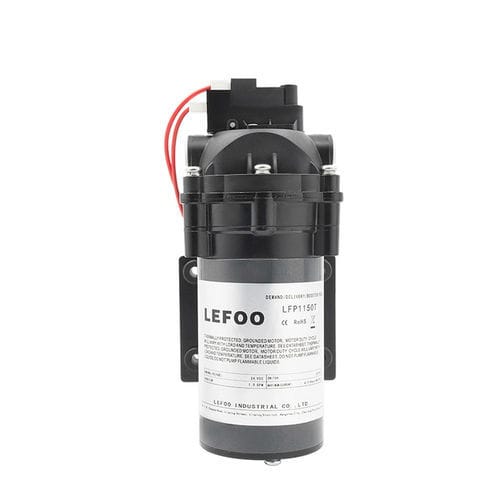

Water pump LFP1150T-30030
electricself-primingdiaphragm

water pump
water pump
water pump
water pump
Add to favorites
Compare this product


Characteristics

Fluid
water
Operation
electric
Priming
self-priming
Technology
diaphragm
Mobility
stationary
Domain
industrial
Applications
discharge, work, process, outlet, conveying
Material
copper
Voltage
24 V
Other characteristics
suction, high-performance, automatic, adjustable, micro, integrated
Flow

1.5 us gal/min
(5.67812 l/min)

Pressure

Max.: 70 psi

Min.: 30 psi

Length

224 mm
(9 in)

Width

102 mm
(4.02 in)

Height

101 mm
(3.98 in)

Description

LEFOO demand delivery pump is a type of diaphragm volumetric pump. The diaphragm plays a sealing and protective role in isolating the transmission medium and the power end (motor). At the same time, the regular movement of the diaphragm changes the volume of the working chamber, thereby sucking in and discharging liquid, and achieving liquid dispersion. Conveying and pressurizing. The pump head is equipped with a microswitch through the valve plate, and the microswitch and the motor end form a series connection. When the pressure increases, the valve plate deforms under the action of pressure, triggering the micro switch to cut off power; when the pressure decreases, the valve plate resumes its deformation, and the micro switch resumes power, thereby realizing automatic start and stop. Features of 24VDC Demand Delivery Pump Automatic start and stop: high-voltage power outage and low-voltage start-up are possible; Multiple pressure disconnect points: adjustable pressure range is 30-100PSI; High self-priming capacity: self-priming height ≥ 2 meters, the suction chamber and discharge chamber are three-chamber independent structures, with high stability; High-performance motor: all-copper motor, strong power, low temperature rise, and can work continuously; Low electromagnetic noise and vibration: The motor adopts an integrated magnetization process, which has lower electromagnetic noise and vibration; Smooth water flow: The water outlet adopts a buffer structure design, which has lower water flow pulse and vibration; Anti-return function: anti-return structural design to prevent medium backflow;
