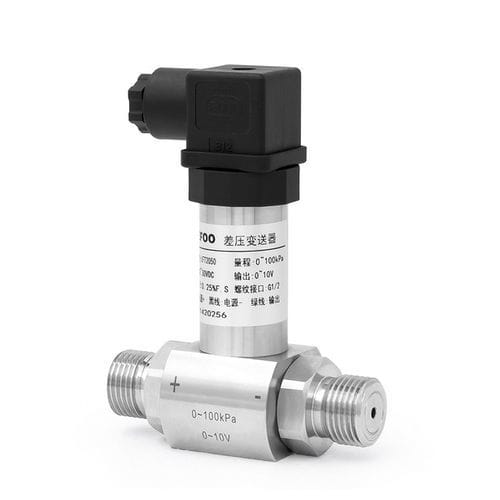

Differential pressure transmitter LFT2050silicon4-20 mA0-10 V
Add to favorites
Compare this product
Characteristics
- Pressure type
- differential
- Technology
- silicon
- Output
- 4-20 mA, 0-10 V, 0-5 V, RS-485
- Electrical connection
- terminal block
- Supply voltage
- 24 Vdc, 12 Vdc, 32VDC, 8VDC
- Mounting
- threaded
- Process connection
- G 1/4, G 1/2, NPT 1/4, NPT 1/2, M20 x 1,5
- Fluid
- for liquids
- Material
- stainless steel
- Protection level
- IP65
- Applications
- process, for water treatment
- Other characteristics
- precision, CE
- Pressure range
Max.: 350 bar
(5,076.32 psi)Min.: 0 bar
(0 psi)- Precision
0.25 %
- Long-term stability
0.5 %
- Process temperature
Max.: 60 °C
(140 °F)Min.: -40 °C
(-40 °F)
Description
LEFOO LFT2050 differential pressure transmitter uses silicon piezoresistive differential pressure sensors as the core components, and outputs standard industrial signals through temperature compensation, digital circuit correction and signal conditioning. The shell adopts an all-stainless steel structure with strong corrosion resistance. The product has advanced design, perfect technology, sophisticated equipment, stable and reliable, and is widely used in industrial process control, flow measurement, medical instruments, aerodynamic measurement, hydraulic, pneumatic equipment and other fields.
Features
* Compact and easy to install
* High stability, low drift
* Various structures to choose from
* Can be used in industrial applications
* Multiple output signal optional：4-20mA, 0-10VDC, RS-485
