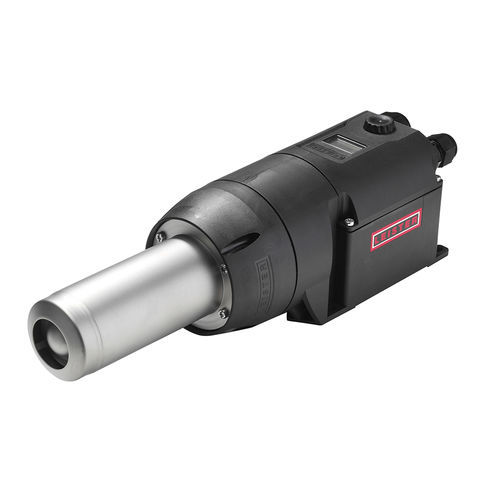

Hot air blower MISTRAL 6 SYSTEM
centrifugalsingle-stagefor heating

Hot air blower - MISTRAL 6 SYSTEM - LEISTER Technologies AG - centrifugal / single-stage / for heating
Hot air blower - MISTRAL 6 SYSTEM - LEISTER Technologies AG - centrifugal / single-stage / for heating
Hot air blower - MISTRAL 6 SYSTEM - LEISTER Technologies AG - centrifugal / single-stage / for heating - image - 2
Hot air blower - MISTRAL 6 SYSTEM - LEISTER Technologies AG - centrifugal / single-stage / for heating - image - 3
Hot air blower - MISTRAL 6 SYSTEM - LEISTER Technologies AG - centrifugal / single-stage / for heating - image - 4
Hot air blower - MISTRAL 6 SYSTEM - LEISTER Technologies AG - centrifugal / single-stage / for heating - image - 5
Hot air blower - MISTRAL 6 SYSTEM - LEISTER Technologies AG - centrifugal / single-stage / for heating - image - 6
Hot air blower - MISTRAL 6 SYSTEM - LEISTER Technologies AG - centrifugal / single-stage / for heating - image - 7
Add to favorites
Compare this product


Characteristics

Type
hot air
Technology
centrifugal
Number of stages
single-stage
Applications
for heating, fan, tool
Other characteristics
axial, single-phase, brushless
Flow

Max.: 400 l/min
(105.669 us gal/min)

Min.: 100 l/min
(26.417 us gal/min)

Operating pressure

3,500 Pa
(0.508 psi)

Nominal power

Max.: 4,500 W
(6.118 hp)

Min.: 1,500 W
(2.039 hp)

Sound level

65 dB

Weight

Max.: 1.5 kg
(3.31 lb)

Min.: 1.2 kg
(2.65 lb)

Length

Max.: 352.2 mm
(13.87 in)

Min.: 321.2 mm
(12.65 in)

Height

91.2 mm
(3.6 in)

Description

• Integrated heating element and tool protection • "e-Drive" for heating output and air quantity • Integrated temperature probe • Display of target/current values Leister’s MISTRAL 6 SYSTEM hot air blower has a brushless, low-maintenance motor. The hot air blower is thus ideal for continuous use in industrial production facilities. The heating tube with a special diaphragm, which ensures a balanced air flow, is available with two tube diameters. Thanks to the tabs on the device, assembly is as easy as can be. The MISTRAL 6 SYSTEM is equipped with an automatic cool-down function. It is possible to control both heating and fan output from outside using the system interface. The display on the MISTRAL 6 SYSTEM model provides users with status information and the possibility of direct programming.

VIDEO
