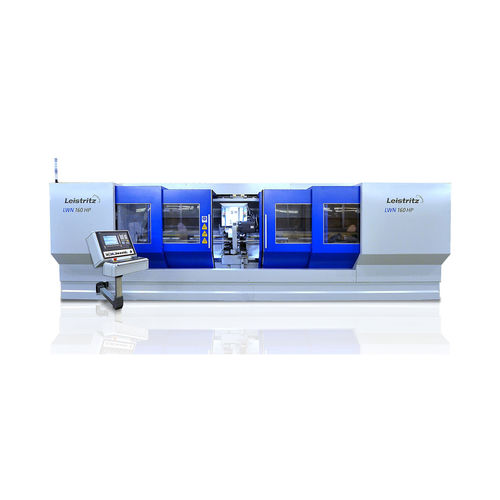

External whirling lathe LWN 160 HPCNChorizontalhigh-precision
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- horizontal
- Applications
- external whirling
- Performance
- high-precision
- Associated function
- grinding
- Diameter
Max.: 100 mm
(3.94 in)Min.: 10 mm
(0.39 in)- Maximum part length
1,000 mm
(39 in)- Overall lenght
5,500 mm
(217 in)- Overall width
3,600 mm
(142 in)- Overall height
2,310 mm
(91 in)- Weight
8,500 kg, 15,000 kg
(18,739 lb, 33,069 lb)
Description
The LWN 160 HP hard whirling machine is ideal for producing lead screws. It is suitable for external machining up to 6,000 mm in length and increases productivity by a factor of 3 compared to modern grinding machines, without compromising machining quality. Very convincing is the fact that the pitch accuracy of five-start threads is only 1 μm, the dimensional accuracy in the cylindricity of the thread diameter is better than 3μm, and the roughness depth Ra achieved in the hard whirling process is less than 0.2 μm.
