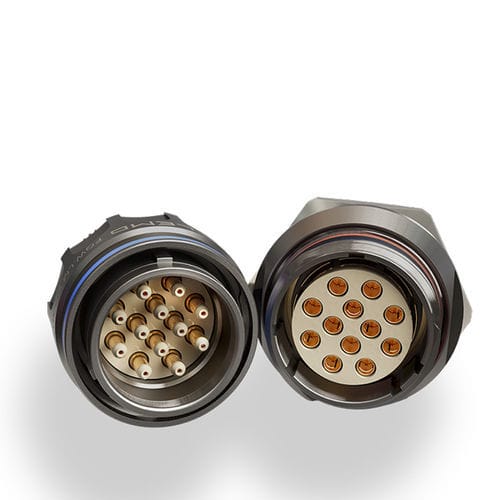

Data connector M series

coaxialmulti coaxialcrimp

LEMO is expanding its field-proven M Series with a new multi coaxial configuration, named LM.232, available in size LM with up to 12x coaxial contacts. These new plugs and fixed sockets have been specifically designed for all applications requiring high frequency performance in harsh environments. This new insert configuration integrates 12x coaxial contacts type 0R (50 Ohm) allowing a frequency up to 26.5 GHz with a low Voltage Standing Wave Ratio (VSWR). The coaxial contact is easy to mount, thanks to its crimp contact and retaining clip. It is designed to be terminated with flexible low-loss communication cable LMR-100A or MULTIFLEX 86. Typical applications are wireless network 5G wireless networks, radar systems, battlefield communications or UAV anti-drone technology, essentially any system where space saving and easy disconnection may be required Compact design and Lightweight Harsh environment High vibration and shock resistance Oil and fuel resistant 360° screening for full EMC shielding Colour coding / keying Sealed to IP68 when mated Ratchet-coupling mechanism Threaded for MIL-DTL-38999L backshell Multi coaxial up to 12 contacts (50 Ohm) High Frequency performance Up to > 26.5 GHz
