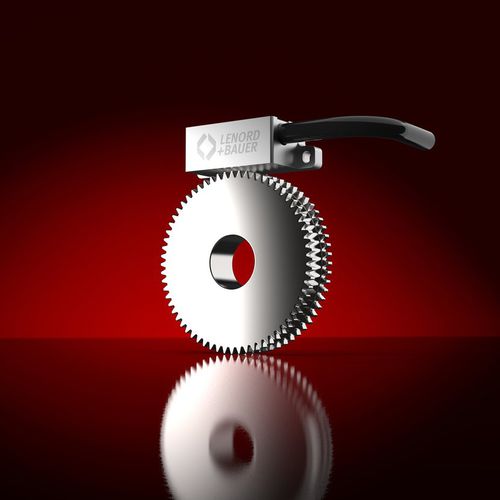

Absolute rotary encoder GEL 2800

magnetichollow-shaftminiature

■ Magnetic absolute single turn encoder kit ■ Bearingless mounting kit consists of a scanning unit and a ferromagnetic measuring scale (toothed wheel) ■ Rotational speed and position acquisition by means of contactless scanning of a two-track toothed wheel ■ Calculation of the absolute position via Vernier evaluation ■ Suitable for usage in harsh environmental conditions, as fully encapsulated electronics ■ Due to the self-calibration, robust in relation to mechanical tolerances ■ Magnetic brakes or the motor winding do not affect the measuring system Features ■ Resolution of 18 bits (1) ■ Output signals - Position: Configurable interface SSI - Rotational speed: Incremental output ■ Absolute accuracy up to ± 0.05°(2) ■ Temperature range -40 °C to +105 °C ■ Degree of protection IP 68 Advantages ■ Maintenance and wear-free, as the system does not require dedicated bearings ■ Quick customer-specific adaptation by selecting the module and inside diameter of the toothed wheel ■ Safe installation and easy commissioning by on-site adjustment of scanning unit and measuring scale as well as parameter configuration by means of testing and programming unit Field of application ■ Drive technology ■ Special purpose machine construction
